Save time and accelerate your circuit design with PowerFlow Studio.
Build and visualize the power concepts of your next electronic project effortlessly.

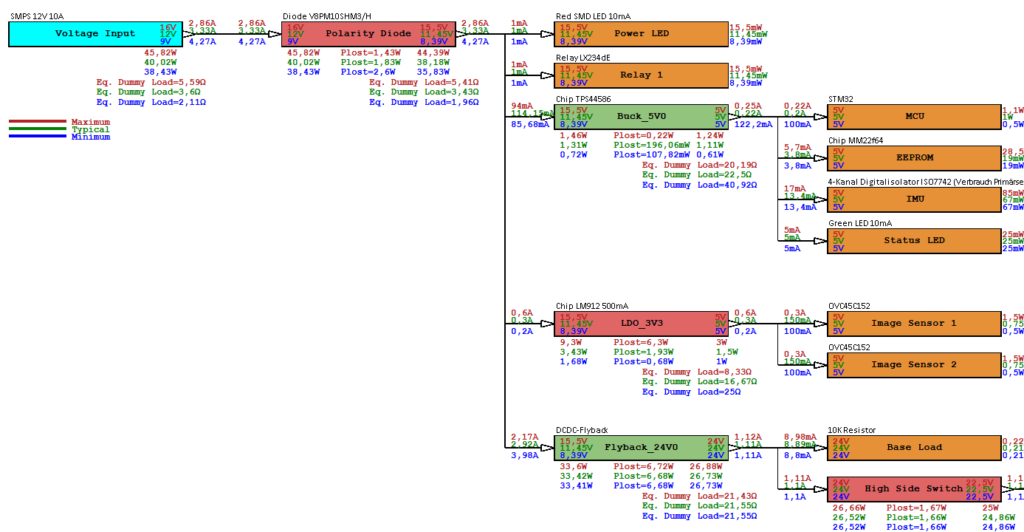

PowerFlow Studio offers a comprehensive visualization of power flow across the components of your electronic circuit. In just moments, you can easily understand how voltage and current are distributed throughout your project.
With PowerFlow Studio, there’s no more guesswork in understanding power flow. The intuitive interface provides you with the tools to make fast, informed decisions while working on even the most complex circuits.
Power Flow Visualization

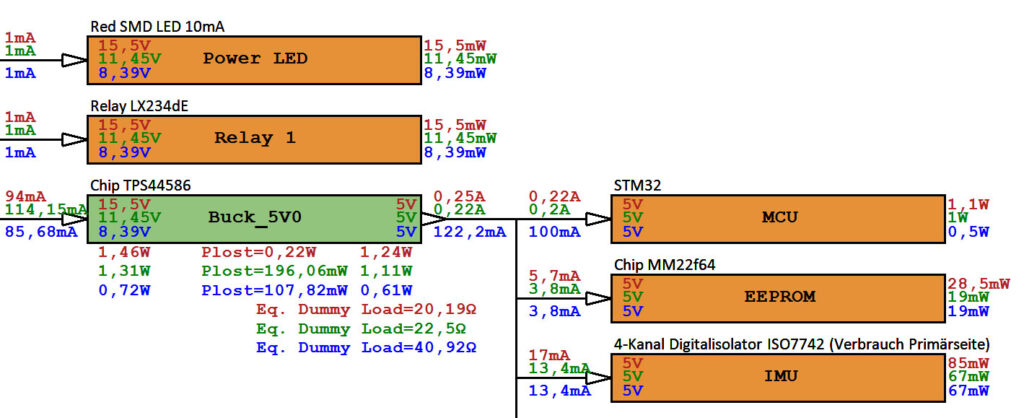

PowerFlow Studio displays the flow of voltage and current between various components in your circuit, helping you clearly see how power is consumed at every point.
Comprehensive Details
The power consumption of each component is automatically calculated and displayed, giving users a clear view of the overall impact of their design.
Simplified Commissioning
PowerFlow Studio makes commissioning effortless by automatically calculating and displaying the total equivalent load of each regulator. This helps you verify and qualify the circuit post-manufacturing with ease.
Overload Alarms

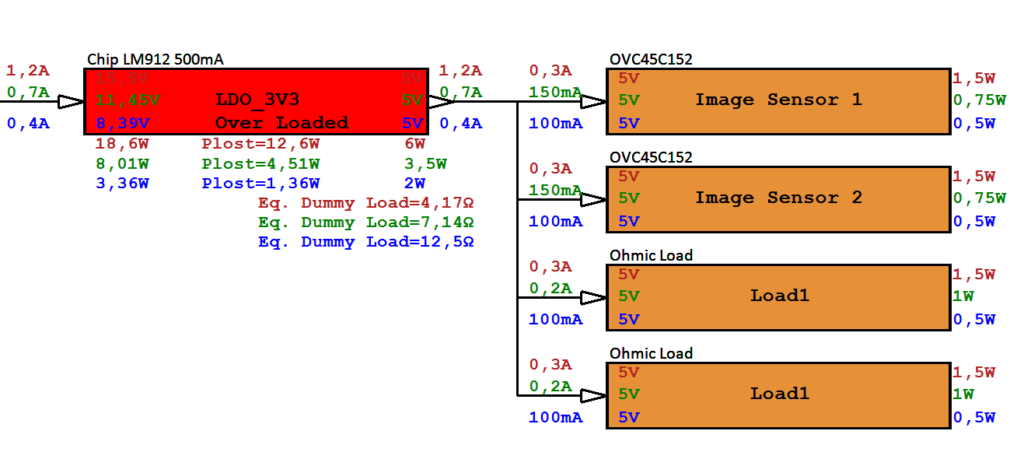

If the equivalent load of a regulator exceeds its maximum rated current, PowerFlow Studio will highlight the affected component, allowing you to address potential issues quickly.
Multiple Operation Cases

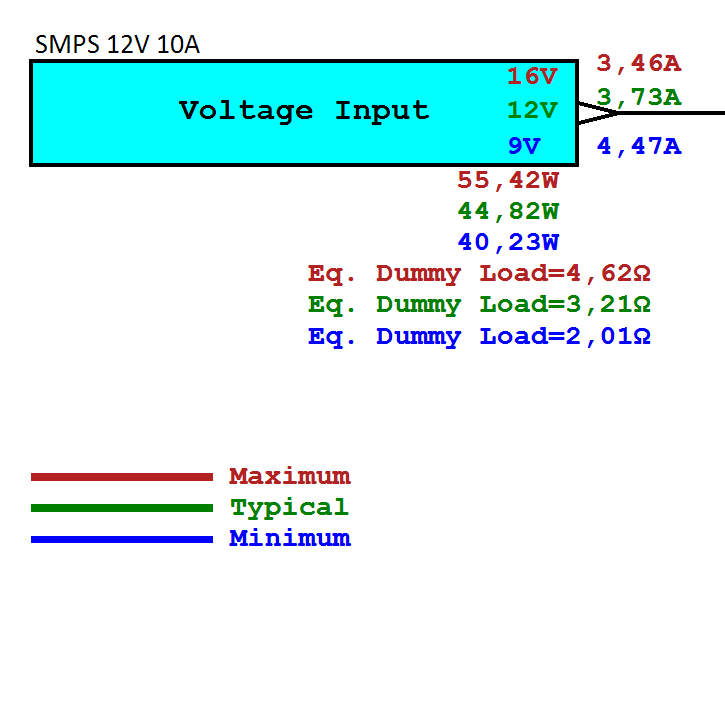

The software calculates three different operating conditions—Maximum, Typical, and Minimum—giving you the flexibility to plan and optimize your power concept accordingly.
Template Support

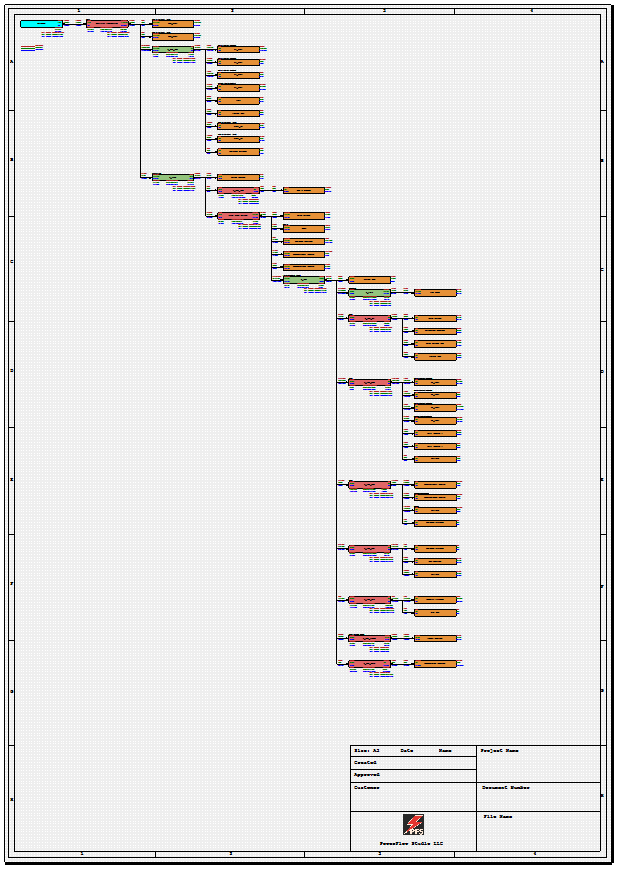

Create custom templates with page sizes ranging from A0 to A4 for professional documentation of your power concept, complete with your company logo and engineer approvals.
